Products Descriptions & Details

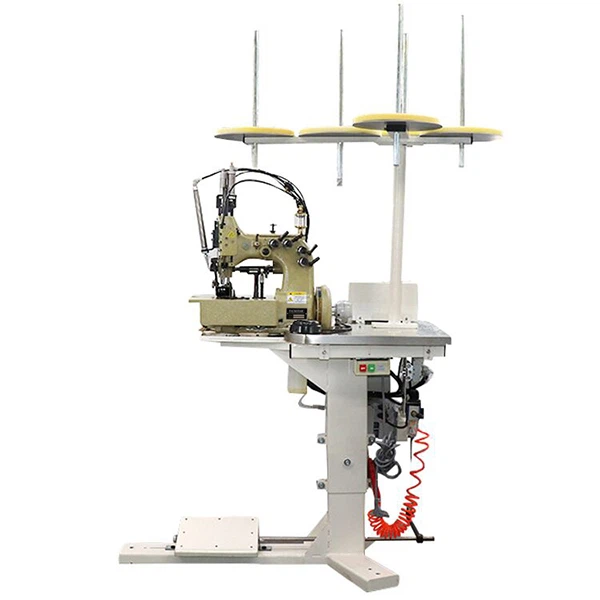

Big bag sewing machine GK81300-A1 is one high speed heavy duty, two needle four thread, safety stitch(chain stitch and overedge stitch) chain stitch industrial sewing machine. It is mainly designed for the big bag production to sew the side seam with the overlock and safety stitches simultaneously on the big bag body made of woven polypropylene fabrics.
With the upper and lower feeding mechanism, this jumbo bag sewing machine 81300-A1 can realize two thread over edge stitch(safety stitch) and double independent chain stitch rows formed stitch type(401+502),which improve the tightness of stitches and ensure the elasticity of stiches, its seam width can up to 20mm( overedge width 15mm and 5mm distance for two parallel stitches).
This high speed container bag sewing machine 81300-A1 is one high performance machine for strong side seams on container bags, jumbo bags, bulk bags, big bags, ton bags which made of jute, burlap and PP woven in the jumbo bag industry worldwide.
The pneumatic foot lifter and the thread chain cutter(hot knife) are available.(Please refer to GK81300-A2 and GK81300-A3).

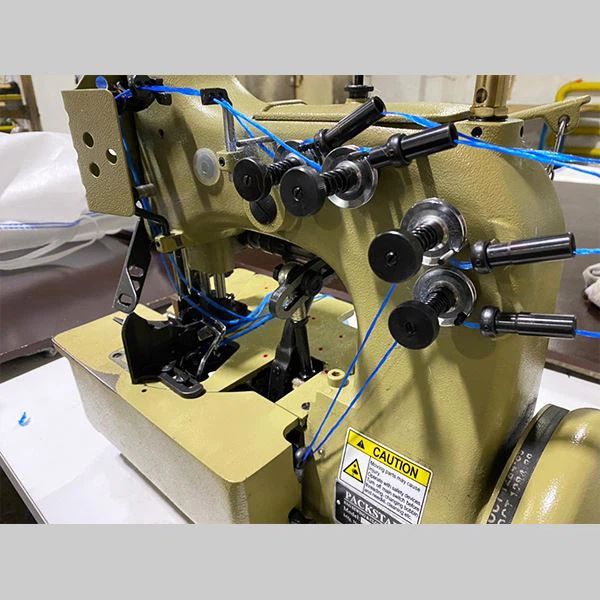

Needles Loopers

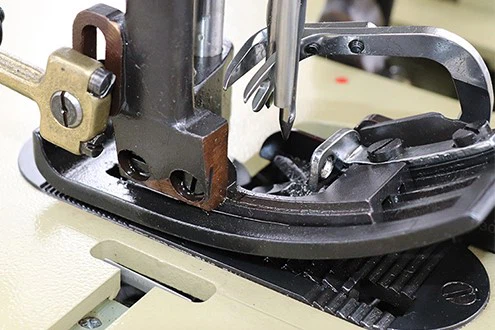

Presser Foot

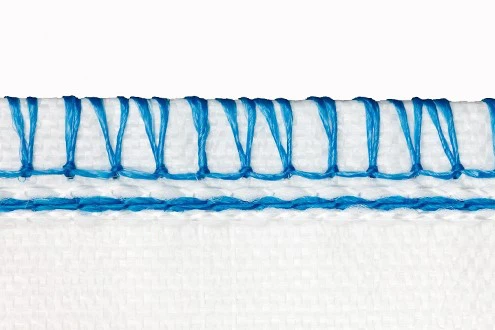

Stitch Sample
Products Features
- Chain stitch and overedge stitch(401.502)
- Top and bottom feed mechanism
- Overedging width 15mm
- Adjustable stitch length 6-13mm
- Filler cord guide from top and/or bottom
- Manual lubrication system and sight feed oiler
Products Specifications
|
Model |
GK81300-A1 |
|
Max.Sewing Speed |
1400SPM |
|
Stitch Length |
6-13mm(Standard:10mm) |
|
Max.Sewing Thickness |
22mm |
|
Overedging Width |
15mm |
|
Needle Distance |
5mm |
|
Overall Seam Width |
20mm |
|
Needle Size |
UY9853G 430 #33 |
|
Stitch Type |
401.502 |
