Long arm big bag stitching machine

Long arm big bag stitching machine

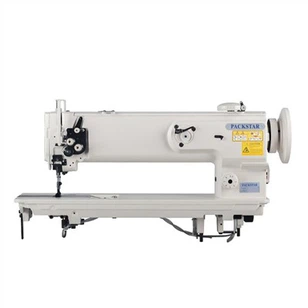

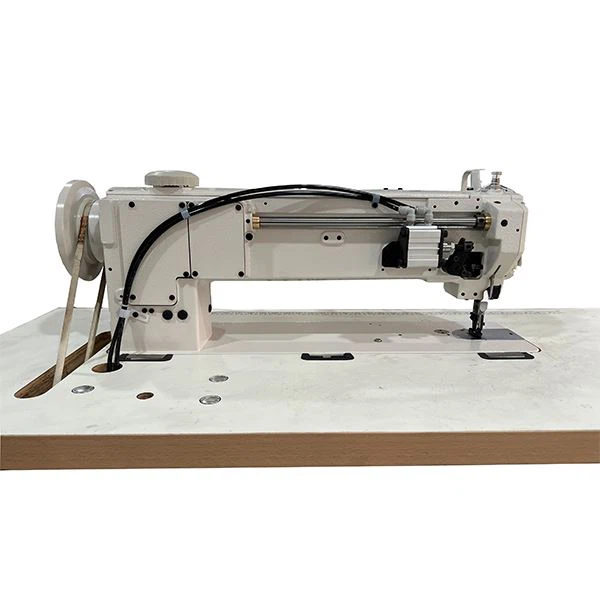

Long arm big bag stitch machine GC1541SL-18 is one of the most popular 18 inch long arm big bag industrial lockstitch sewing machines in the global jumbo bag industry at present. Its large working space 457x100mm under the arm ensures the freeform sewing and attaching the loop to the big bag body at the high speed.

This long arm big bag stitch machine is 18 inch long arm version machine developed from the regular GC1541S. High speed, compound feed with walking foot, top dial as the stand kit for the walking foot movement adjustment, revere lever, 9mm by foot lift and 16mm max foot lift ensures the enough clearance for the multi-layers jumbo bag stitch easily, the large horizontal large hook with the large bobbin with the high efficiency, especially the side bobbin replacement simple and fast during the sewing without movement of the big bag and its loop. In addition, the pneumatic foot lift as the standard device for this machine.

The different long arm big bag stitch machine with 18 inch, 25 inch and 30 inch long arm length, even the direct-driven version machine with the strong mini integrated built-in servo motor available for this long arm series machines, basic function with the top and bottom needle position, the automatic thread trimmer function as the option.

GC1541SL-18 long arm big bag stitch machine is one proper long arm for the manufactures worldwide, who make big bags, jumbo bags, container bags, ton bags, FIBCs and more.

• Long arm lockstitch sewing machine.
• With large horizontal axis hook.
• With safety clutch mechanism.
• With built-in bobbin winder.
• With built-in knee lifter.
• Pneumatic foot lift and backtacking are available.
