Products

Ton Bag Sewing Machine
Model GA3670D
Single needle lockstitch
Top and bottom feed
Sewing speed 1600SPM
Max.stitch length 13.7mm
Presser foot lift 18mm
Needle DDX1 #25
Stitch type 301
Large shuttle hook
Automatic lubrication
Features
Products Descriptions

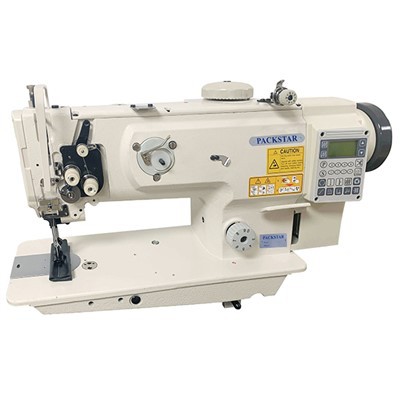

Ton bag sewing machine
Ton bag sewing machine GA3670D is the direct-driven version bulk bags industrial sewing machines based on the regular GA3670 machine. This machine includes the high speed, long stitch length, automatic lubrication system and large working space, which is one of the best ton bag sewing machines in the global market at present.
With all the advantage of basic GA3670 machines, this ton bag sewing machine GA3670D has the integrated strong direct-driven servo motor up to 1000W,which provides the enough power at the beginning of sewing, upper needle position and lower needle position function, pneumatic foot lift and reverse as the standard device. Especially, the face plate of this machine use the unique design to seal fully without oil drop to the fabric of big bags during the sewing. Low parts wearing assures the economical after-sales serice.
This machine also can sew thick thread products, such as anti-fire panel, ratchets straps, parachutes, tarpaulins, tents, cargo slings and more.
Features
- Powerful direct-driven motor up to 1000W.
- Pneumatic foot lift and reverse.
- With the top and bottom needle position function.
- Large working space under the arm.
- Ease set up and maintenance.
Specifications
Model |
GA3670D |
Needle of the number |
1 |
Feeding structure |
Top and bottom feed |
Max. sewing speed |
1600RPM |
Max. stitch length |
13.70mm |
Max. sewing thickness |
18mm |
Needle bar stroke |
46.80mm |
Needle size(standard) |
DDx1 25# |
Hook |
KRT 132 |
Working space |
420x205mm |
detailed Image
