High speed bag closing system

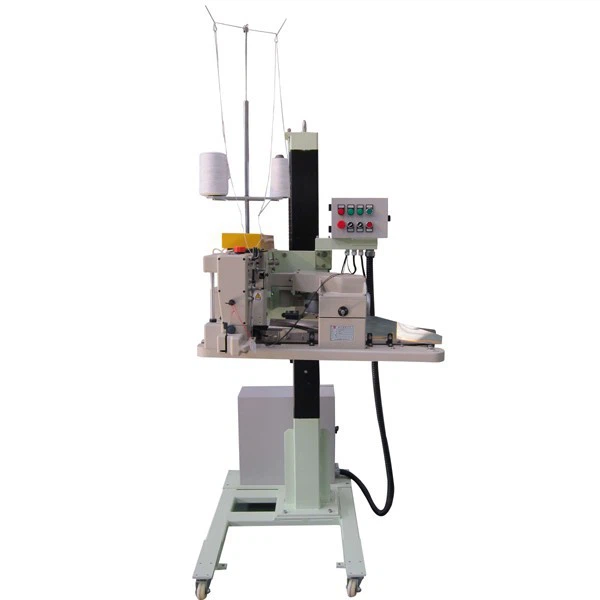

High speed bag closing system A1-PB+DS-9C+CP6000 is including height adjustable sewing pedestal A1-PB, high speed sewing head DS-9C, bag infeed device CP6000. The whole sewing system is adopted PLC control, automatic bag top folding, automatic sewing and thread cutting, the control system makes each device working smoothly and continuously. The sewing height is adjustable to suit different size of bags, it can be matched with auto weighing machine, conveying line, palletizing robot, etc to the auto bag packaging line. It is suitable for folding and sewing of PP bags, paper bags, etc, widely used in food, feed, fertilizer, chemical industries and so on.



A1-PB sewing pedestal

---



It is height adjustable pedestal, carbon steel body, with casters for easy movement from one place to another place. It used to mount sewing head, bag infeed device, crepe tape stand and tag placer.



Specifications:

●Sewing height: 850-1600mm(from ground to needle)

●Square size: 125x125mm

●Motor: 550W



DS-9C sewing head

---



DS-9C is high speed sewing head, with full sealed lubrication system, all parts are dust-proof which extended the service life and decrease the maintenance cost.

Specifications:

●Max.sewing speed: 2700SPM

●Stitch length: 7-10.5mm

●Needle: DR-H30 #26

●Stitch type: 401

                                                                                                                    (Optional sewing head: DS-9CW double needle four thread chain stitch machine)

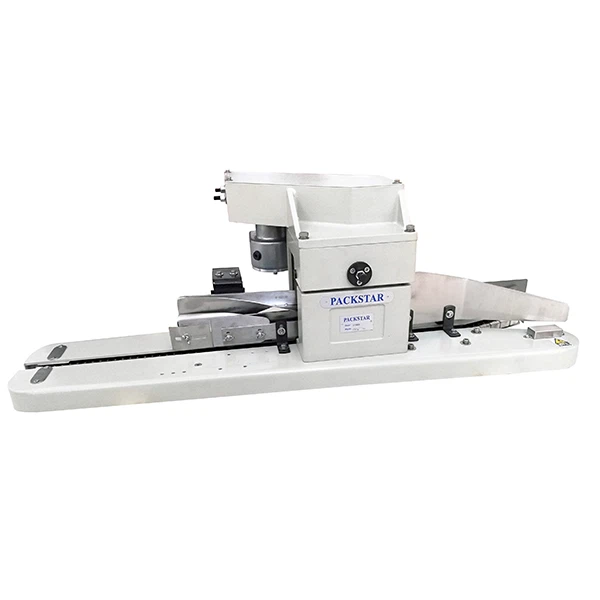

CP6000 infeed device

---



CP6000 is long version chain type infeed device, which can be plain feed or with bag top folding, the folding direction can be back or front. This device can not work alone, must match with sewing machine on the pedestal.



Specifications:

●Feeding speed: 7-18m/min

●Folding width: 30-40mm

●Motor: 250W

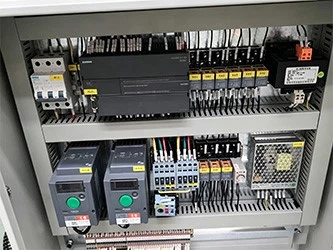

Control system

---

It is adopted double VFDs control for regulating the working speed of sewing machine and infeed device. With imported electrical components to make sure the stability of the whole sewing system, it leaves the port to connect the conveyor. And the system power is standard with 380V/50Hz, other volts are available by adding the transformer.

Configurations:

●Auxiliary relay: Schneider

●Timing relay: Omron

●VFD/inverter: Schneider/Omron/Siemens

●Photo switch: Omron

●PLC: Siemens/Omron

●Solenoid valve: SMC/AirTAC

●Circuit breaker: Schneider

●Power switch: Schneider

●Contactor: Schneider/Siemens





Model	A1-PB+DS-9C+CP6000
Working capacity	500-800bags/hour
Sewing head height	720-1220mm from the ground to the needle
Brake motor	4P,380V,3-phase,0.75KW or 0.4KW depends on conveyor speed
Start/Stop	Photo-switch
Sewing machine head	DS-9C
Max. sewing speed	2700SPM
Stitch length	7-10.50mm(standard:10mm)
Stitch type	Chainstitch, single needle, two thread
Cutter type	Air cylinder driven cutter
Air pressure/consumption	4kg/cm2, 3.5NL/min
Lubrication system	Automatic oil bath system
Machine pulley	Φ100mm(the special size available as per the special order)
Needle size	DR-H30 #26
Thread type	Synthetic or cotton, 20/6, 20/9
