Automatic bag closing system with tag placer
Model A1-PB+DS-9C+CP6000-2+LS-130D
Automatic bag closing system with tag placer
Height adjustable large square pedestal A1-PB
High speed bag closing head DS-9C/DS-9CW
Bag feed-in device CP6000-2
Tag placer LS-130D
PLC controlled start-stop
Automatic thread cutting system
Features
Products Description
Automatic bag closing system with tag placer
Automatic bag closing system with tag placer A1-PB+DS-9C+CP6000-2+LS-130D is including large sewing pedestal A1-PB, high speed bag closing machine DS-9C, special infeed device CP6000-2 and tag placer LS-130D. The whole sewing system includes PLC control, auto bag top folding, tag placing and bag closing. The whole automatic bag closing system with the tag placer is designed to automatically position pre-printed product information labels/tags near the nip-point, or infeed, of a bag as it is being sewn closed while eliminating the operator's task of hand feeding labels and tags, increasing line speed and throughput.
It is one height adjustable pedestal, carbon steel body, with casters for easy movement from place to place. It is used to mount sewing head, bag infeed device, crepe tape stand and tag placer.
Specifications:
●Sewing height: 850-1600mm(from ground to needle)
●Square size: 125x125mm
●Motor: 550W
DS-9C sewing head
DS-9C is high speed bag sewing head, with full sealed lubrication system, all parts are dust-proof which extended the service life and decrease the maintenance cost.
Specifications:
●Max.sewing speed: 2700SPM
●Stitch length: 7-10.5mm
●Needle: DR-H30 #26
●Stitch type: 401
(Optional sewing head: DS-9CW double needle four thread chain stitch machine)
CP6000-2 is the special infeed device for matching the tag placer to feed the tags, which is for folding the bag top, the folding direction can be back or front.
Specifications:
●Feeding speed: 7-18m/min
●Folding width: 30-40mm
●Motor: 250W
LS-130D auto tag placer
It is the motor controlled, belt transmission and mechanical pliers by air cylinder, easy adjust the tag feeding speed according to the sewing system speed. This device is the core part of this whole automatic bag closing system with tag placer for the filled bag top mouth.
Specifications:
●Tag width: 55-75mm
●Tag length: 95-130mm
●Tag thickness: less than 1mm
●Tag material: Paper, plastic

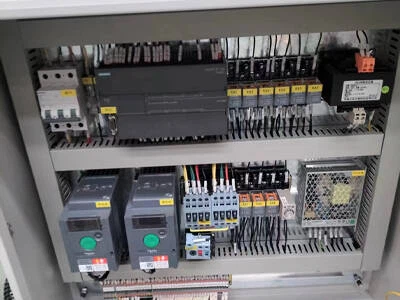

It is adopted double VFDs control for regulating the working speed of sewing machine and infeed device. With imported electrical components to make sure the stability of the whole automatic bag closing system with the tap placer, it leaves the port to connect the conveyor. And the system power is standard with 380V/50Hz, other volts are available by adding the transformer.
Configurations:
●Auxiliary relay: Schneider
●Timing relay: Omron
●VFD/inverter: Schneider/Omron/Siemens
●Photo switch: Omron
●PLC: Siemens/Omron
●Solenoid valve: SMC/AirTAC
●Circuit breaker: Schneider
●Power switch: Schneider
●Contactor: Schneider/Siemens
Specifications
|
Model |
A1-PB+DS-9C+CP6000-2+LS-130D |
|
|
Working capacity |
500-800bags/hour |
|
|
Sewing head height |
720-1220mm from the ground to the needle |
|
|
Brake motor |
4P,380V,3-phase,0.75KW or 0.4KW depends on conveyor speed |
|
|
Start/Stop |
Photo-switch |
|
|
Sewing machine head |
DS-9C |
|
|
Max. sewing speed |
2700SPM |
|
|
Stitch length |
7-10.50mm(standard:10mm) |
|
|
Stitch type |
Chainstitch, single needle, two thread |
|
|
Cutter type |
Air cylinder driven cutter |
|
|
Air pressure/consumption |
4kg/cm2, 3.5NL/min |
|
|
Lubrication system |
Automatic oil bath system |
|
|
Machine pulley |
Φ100mm(the special size available as per the special order) |
|
|
Needle size |
DR-H30 #26 |
|
|
Thread type |
Synthetic or cotton, 20/6, 20/9 |
|
|
LS-130D Automatic Labelling machine |
Label width |
50-75mm |
|
Label length |
95-130mm | |
|
Label thickness |
1mm | |
|
Label material |
Kfrat paper, offset paper | |
