Feed-off-arm
video
Feed-off-arm

Feed-off-arm filter bag sewing machine

Model GT1263
Three needle six thread chain stitch
Bottom feed with puller feed
Sewing speed 5000SPM
Stitch length 2.6-4.8mm
Needle TVx5 #21
Distance between two needles 4.8mm,6.4mm
Stitch type 401
Automatic lubrication

Features

Descriptions(1)

Feed-off-arm filter bag sewing machine

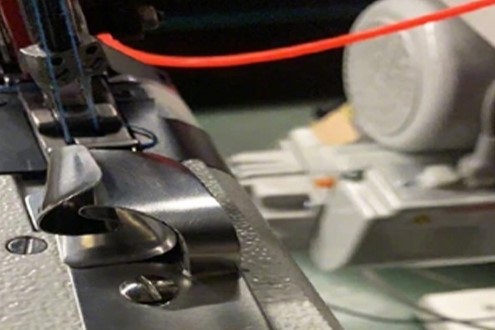

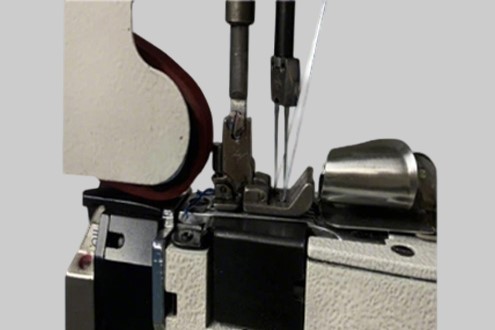

Feed-off-arm filter bag sewing machines, GT1262 and GT1263, are the high speed, feed-off-the-arm, lower feed, chainstitch industrial sewing machine. GT1262 is the double needle four thread chainstitch sewing machine, GT1263 is the three needle six thread chainstitch sewing machine. The looper tucks the needle thread without fail and prevents thread skipping, low-tension stitching capacity, which both of them make these two machines can realize the beautiful and consistent seam. The automatic thread trimmer, needle cooler, folder, rear puller and the whole stainless steel stand & table top available as per the actual requests.

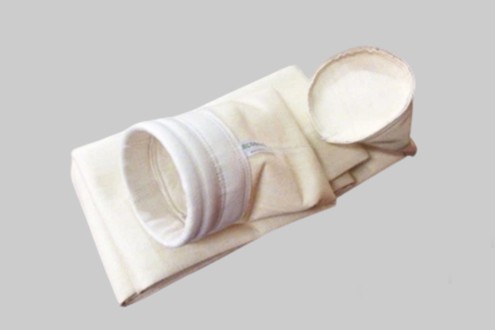

These two feed-off-arm filter bag sewing machines are the leading double chainstitch sewing machine in the market for the medium to heavy weight materials, such as jeans, uniforms, raincoats as well as the tubular products. Especially very good choice for the most filter bags and dedusting bags manufactures because of its slim cylinder arm structure, which can fold the fabric to join and stitch by 2 or 3 straight chainstitch seam.



Features(1)

● High speed, feed-off-arm, double chainstitch sewing machine.

● Lower feeding structure

● The fully automatic lubrication system.

● Clear view of the work area for the operator with the large working space.

● Various accessories are available as the option.



Specifications (1)

Model

GT1262

GT1263

Feeding structure

Bottom Feed

Number of the needle

2-needle, 4-thread

3-needle,6-thread

Max. sewing speed

5000SPM

Stitch length

2.6-4.8mm

Max. foot lift

8mm

Needle bar stroke

34mm

Needle

TVx5(#21), 149x7(#130)

Needle gauge

4.8, 6.4mm

Thread

#20

Lubrication

Automatic





Detailed-Image(1)



Feed-off-arm filter bag sewing machine
