Heat sealing is one of the most important steps in packaging. A strong, clean seal protects products from moisture, dust, leakage, and contamination. However, kraft paper, PP, and PE bags behave very differently under heat. Choosing the wrong heat sealer can lead to weak seals, burnt film, paper delamination, or slow production. This guide explains what customers should know before selecting a heat sealer for kraft paper, PP.
1. Understand the Material First
Kraft paper itself is not a thermoplastic material, so plain kraft paper cannot be heat sealed directly. Most heat-sealable kraft paper bags are coated or laminated with a heat-seal layer, such as PE or PP. The heat sealer melts this coating to form a seal. For heavy-duty paper bags, a heat seal alone may not be enough. Many manufacturers use a heat sealer with a rear sewing machine to combine sealing with sewing for extra strength. This is why machines such as the KS 2 Series Heat Sealers with Rear Sewing Machine for Heavy Duty Paper Bags are used for demanding paper bag applications. The KS 1 Series Heat Sealers for Heavy Duty Paper Bags are suitable where heat sealing alone is required.

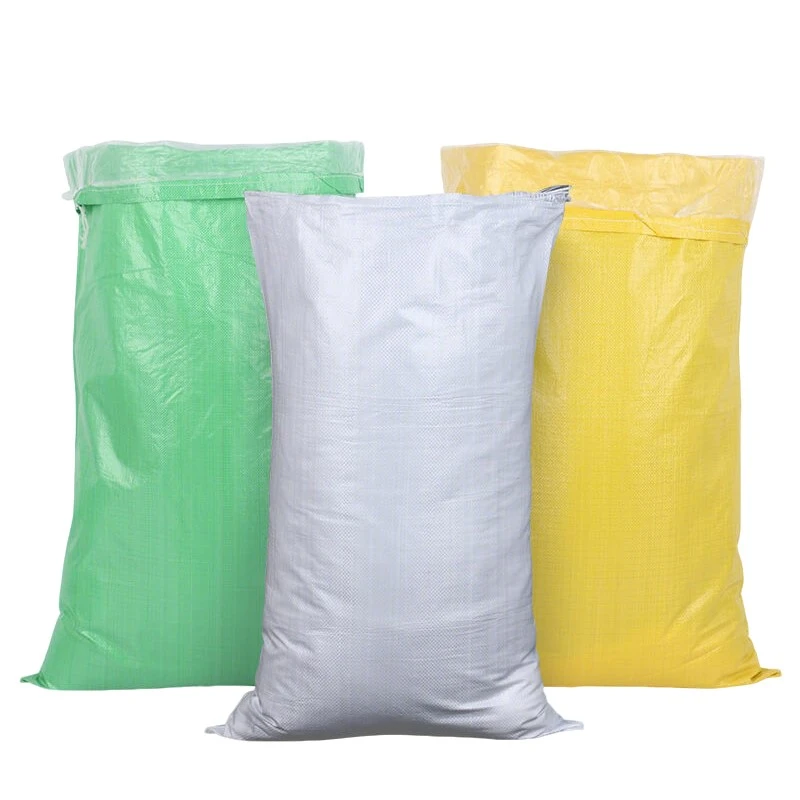

PP Bags
PP, or polypropylene, has a higher melting point than PE. It requires higher sealing temperatures, stable pressure, and sufficient cooling. PP bags are often used for heavier products, so the seal must be strong and consistent. A machine designed for heavy-duty PP and PE bags, such as the HS Series Heat Sealing Machines for Heavy Duty PP and PE Bags, is a better choice than a light-duty impulse sealer.
2. Match the Machine to the Bag Type
modular title
Different bag materials and structures require different sealing methods
Constant heat sealers
It can provide continuous heat and are often used for coated paper bags and higher-volume production.
Band sealers
Used for continuous sealing of bags at higher speeds.
Heavy-duty heat sealers with rear sewing
designed for thick paper bags that need both a strong heat seal and reinforced sewing
For customers dealing with multiple materials, it is important to check whether the machine has adjustable temperature, pressure, and dwell time. A machine that works well for thin PE bags may not be suitable for thick, PE-coated kraft paper bags.
3. Key Selection Factors
Before buying a heat sealer, consider the following:
| Factor | Why It Matters |
|---|---|
| Bag material | Kraft paper, PP, and PE need different temperatures and sealing methods. |
| Coating or lamination | Coated paper bags seal through the coating, not the paper fibers. |
| Bag thickness | Thicker materials need more heat, pressure, or dwell time. |
| Bag size and gusset | Wide or gusseted bags may require a larger sealing area and better support. |
| Seal width and pattern | Wider seals are stronger; some applications need serrated or special patterns. |
| Temperature range | Must match the melting point of the material. |
| Pressure and dwell time | These control seal strength and appearance. |
| Production speed | Manual, semi-automatic, and automatic machines suit different outputs. |
| Customization | Voltage, plug, language, conveyor, coding, and special fixtures may be needed. |
4. How to Set Heat Sealing Parameters?
A good seal is created by the right combination of temperature, pressure, and dwell time.
Start with the temperature recommended for the material.
Increase temperature gradually until a strong seal is achieved, then reduce slightly to avoid burn-through.
Use enough pressure to bond the surfaces without crushing the bag.
Allow the seal to cool before stacking or handling.
Test the seal by peeling it apart. A good seal should not separate easily or leave a clean, unsealed line.
For coated kraft paper bags, too much heat can cause the coating to burn or the paper to delaminate. For PP and PE bags, too much heat can cause shrinking, stretching, or hole formation.
5. Common Problems and Solutions
Weak seals
Usually caused by low temperature, low pressure, short dwell time, or dirty sealing bars. Check all three parameters and clean the bars.
Burn-through or melted film
Usually caused by too high temperature, too long dwell time, or too much pressure. Reduce heat or dwell time.
Wrinkled or uneven seals
Often caused by misaligned bags, insufficient tension, or worn PTFE tape. Replace the tape and check bag feeding.
Paper bag delamination
Usually caused by overheating the coating layer. Use a lower temperature and test again.
6. Frequently Asked Questions
Can one heat sealer handle kraft paper, PP, and PE bags?
Some adjustable machines can handle multiple materials, but heavy-duty paper bags and heavy-duty PP/PE bags often require different machine designs. For best results, choose a machine series matched to the main material.
Do heavy-duty paper bags need sewing after heat sealing?
For many industrial and agricultural applications, yes. Heat sealing provides a barrier seal, while rear sewing adds mechanical strength. This is common for heavy-duty paper bags.
How do I choose between a KS series and an HS series machine?
KS series machines are typically used for heavy-duty paper bags, including models with rear sewing. HS series machines are designed for heavy-duty PP and PE bags.
Can heat sealing machines be customized?
Yes. Professional manufacturers and suppliers can provide customized heat sealing machines based on material, bag size, thickness, speed, voltage, and other requirements.
Conclusion
The right heat sealer for kraft paper, PP, and PE bags depends on the material, bag construction, thickness, load, and production speed. Coated kraft paper bags need controlled heat to seal the coating without damaging the paper. PP bags need higher temperatures and strong pressure. PE bags need a lower, more precise sealing window. For heavy-duty paper bags, a heat sealer with rear sewing can provide both sealing and reinforcement. For heavy-duty PP and PE bags, a dedicated heavy-duty heat sealing machine is recommended.
For customers looking for reliable heat sealing solutions, PACKSTAR offers KS 2 Series Heat Sealers with Rear Sewing Machine for Heavy Duty Paper Bags, KS 1 Series Heat Sealers for Heavy Duty Paper Bags, and HS Series Heat Sealing Machines for Heavy Duty PP and PE Bags. Customized options are available to meet different packaging needs.
