Products Descriptions
Tired of inefficient manual stitching down your FIBC jumbo bag production? The 18 inch automatic long arm FIBC sewing machine GC1510DL-18 is an upgraded direct drive industrial sewing machine tailor-made for professional big bag factories. Built upon the reliable GC1510L-18 machine head, this FIBC container bag stitching machine effectively cuts labor costs, accelerates production speed, and delivers stable, uniform stitching for all large container bags and woven bulk bags.

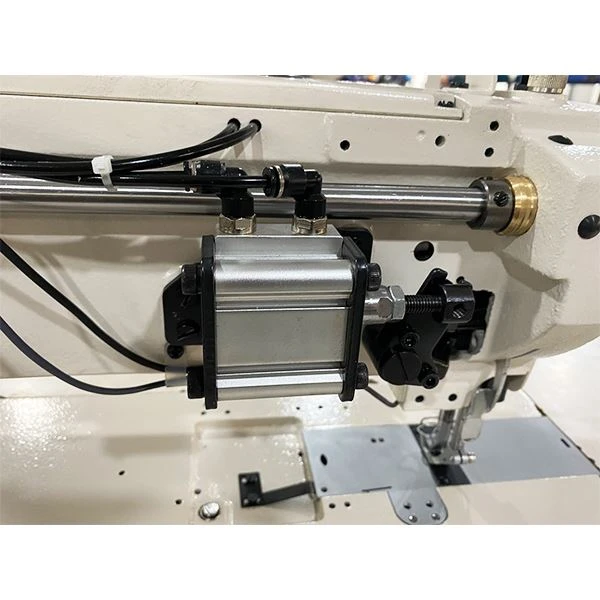

There are two different models for this series machines, GC1510DL-18 features precision top and bottom needle positioning for accurate, deviation-free industrial stitching. The upgraded GC1510DL-18-7 comes with complete premium functions: auto thread trimmer, pneumatic foot lift and air reverse stitching with H.S.i90 strong servo motor under the table top. With all core advantages of the GC1510L-18,the extended working space(460x100mm)design supports freeform movement of jumbo bags fabrics and webbings, solving the stitching limitations of ordinary short-arm machines. Ideal for sewing oversized FIBC bags, bulk woven sacks and complex corner seams, greatly reducing rework rates and improving your finished bag quality and qualification rate.
To meet diverse production requirements, we also have 25-inch and 30-inch extra long arm sewing machines with 150mm height cater to super-large jumbo bag production. Perfect for jumbo bag manufacturers, packaging factories and industrial sewing machine distributors, this GC1510DL-18 jumbo bag manufacturing sewing machine series significantly optimizes your FIBC bag production line and boosts your product market competitiveness. Contact us for custom equipment configurations, professional technical support and competitive wholesale prices.
Core Benefits & Features for Your Jumbo Bag Production
- Premium Direct Drive System: Industrial-grade direct-drive structure with optional Taiwan H.S. Servo motor for stable long-time jumbo bag sewing.
- Precision Needle Position Control: Upper and lower needle positioning design ensures neat, consistent stitching and reduces defective jumbo bags.
- Fully Automatic Stitching Functions: GC1510DL-18-7 features auto thread trimming, pneumatic foot lift and air reverse stitching to save labor and boost throughput.
- Extra Large Working Area: 460×100mm spacious workspace supports freeform sewing for oversized FIBC and jumbo bags without material squeezing.
- Full Series Custom Options: Available in 18/25/30-inch long arm and double-needle models to match different jumbo bag production scenarios.
Applications
Jumbo Bag
Container Bag
Mineral Bag
Products Specifications
|
Model |
GC1510DL-18 |
GC1510DL-18-7 |
|
Number Of Needle |
Single needle |
|
|
Max.Sewing Speed |
2200SPM |
|
|
Max.Stitch Length |
9mm |
|
|
Max.Sewing Thickness |
16mm |
|
|
Needle(Standard) |
DPx17 |
|
|
Thread Trimmer |
None |
Automatic |
|
Hook Type |
Double capacity vertical axis rotary hook |
|
|
Working Space |
460x100mm |
|
Products FAQ
1.What types of large bags are your machines suitable for?
A: They are widely used for sewing container bag baffles, cross bottoms, filter bag cylinder beds, and other mainstream large bag styles. Custom sewing of large bags with special shapes is also supported.
2.How long is the service life of your big bag sewing machine?
A: The machine adopts integral cast iron structure and high-precision accessories. With standard maintenance, the service life can reach more than 10 years.
3.How about the packaging and transportation of that machine?
A: All the machines are packed in standard export cartons or wooden packaging boxes to prevent damage during transportation.
4.What payment terms do you accept?
A: We accept T/T,Paypal,Western union ect.
why choose us
our Company
PACKSTAR is a leading professional manufacturer of bag sewing machines, bag closing machines and supporting packaging equipment. Our products are trusted by clients in over 30 countries, serving food, chemical, feed, grain, fertilizer and packaging industries.
Meanwhile, we offer one-stop services including pre-sales technical consultation, free solution design, on-site installation guidance, long-term after-sales maintenance & spare parts supply.
Welcome to email or call us get the professional sewing solution and quotation.
