Products Descriptions & Details
As we all know, the big bag lockstitch sewing machines work in forward and backward stitching usually, making zigzag stitches to attach lifting loops to big bag body. In this circumstance, the user have to turn the whole bag body in different directions to get a x-box stitches especially for the parts where two loops crossover, this process is consumes a lot of time and physical effort.

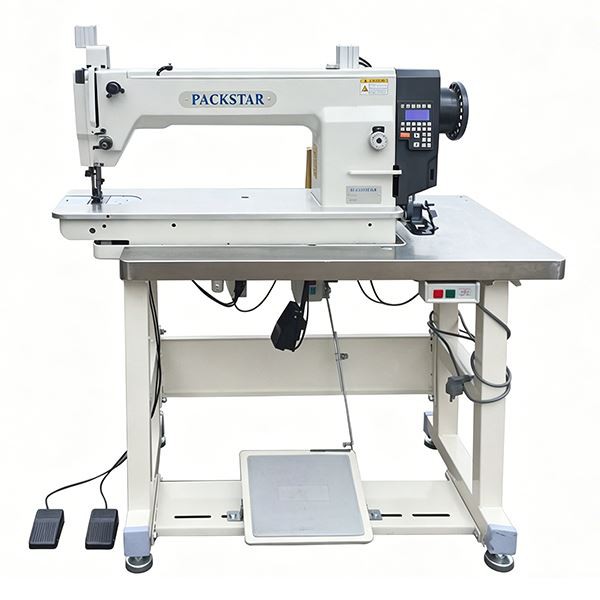

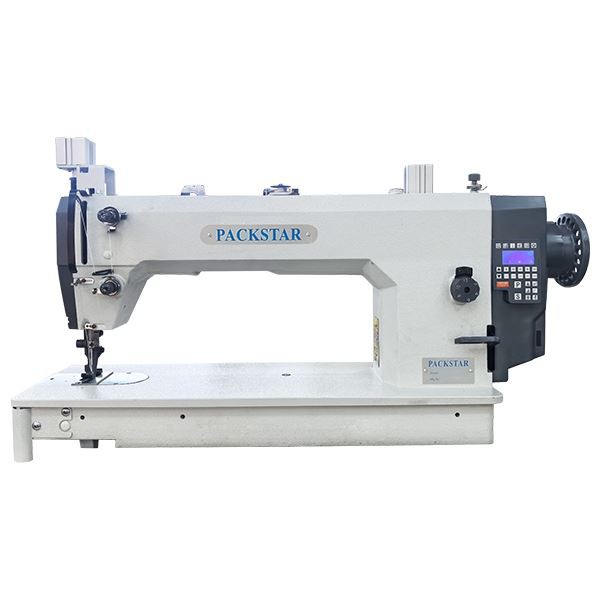

High speed 1-needle big bag sewing machine with the large rotary hook GA4670D and GA4670D-7 are designed to solve the above issue. By keeping the handle presser foot lifting, the user could move the fabric in all direction to achieve x-box and zigzag stitches, this free form sewing function raise the output even for the new-operator.
GA4670-D is the basic direct-driven machine with the needle position function, GA4670D-7 has all the automatic function with the auto thread trimmer. Both of these two machines have the extra large size rotary hook(6 times), large stitch length(14mm), high foot lift(16mm) and self production when the thread or hook skip. These two high speed 1-needle jumbo bag sewing machine with the large rotary hook suitable for various kinds of big bags in the global jumbo bag industry.
High Foot Lift
Large Shuttle Hook
Needle Plate
Products Features
- Top and bottom feed mechanism
- 6 times extra large rotary hook
- Reverse stitch and free sewing
- Mainly for sewing various kinds of jumbo bags
Products Specifications
|
Model |
GA4670D | GA4670D-7 |
|
Number Of Needle |
1-needle |
|
|
Feeding Structure |
Top and bottom feed |
|
|
Max.Sewing Speed |
1600SPM |
|
|
Max.Stitch Length |
14mm |
|
| Presser Foot Lift |
13/16mm |
|
| Thread Trimmer |
- |
Automatic |
|
Needle(Standard) |
DYx3 #27 | |
|
Hook |
Extra large rotary hook(KRT132) |
|
|
Working Space |
500x180mm | |

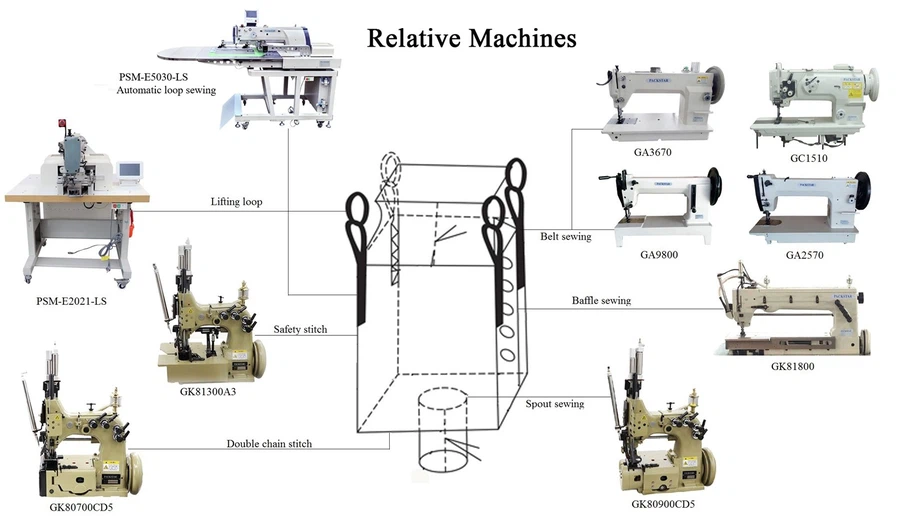

Look For Big Bags, Small Bags Making&Closing Sewing Machines!
PACKSTAR-Your Reliable Partner In These Industries
Company profile
Deko Corporation is located in the center of the free trade zone at the national level Hi-tech Zone, Xi'an, China. We mainly dedicate in developing, producing and marketing of PACKSTAR brand big bag, bag sewing & bag closing machines since 1990s, we are one of the world leading suppliers of bag closing and sewing machines in the global market.
For more than 30years, we continuously improve the quality from even one small screw to the whole machine lines and our service, in order to meet our valued customers demand both in domestic and overseas market, improve theirs work efficiency and create the value by joint-efforts.
Superior Quality
Stringent quality control in manufacturing & pre-shipment inspections–delivering consistent reliability for your industrial big bags, bags making and closing production line.
R&D Center
The professional R&D Center drives innovation in the packaging industry. Industrial and National standard-your trusted partner in big bags, bags making and closing industries.
Price Advantage
We deeply understand the quality first as well as the cost importance for all of you whether you plan to start or you already. We always think quality, price and service together!!!
OEM/ODM Service
We offer the full OEM/ODM service in this industry worldwide: R&D-driven design, customization and manufacturing. Global inquiries welcome-your vision, our expertise!
Welcome to email or call us get the professional sewing solution and quotation.
