Products Descriptions & Details

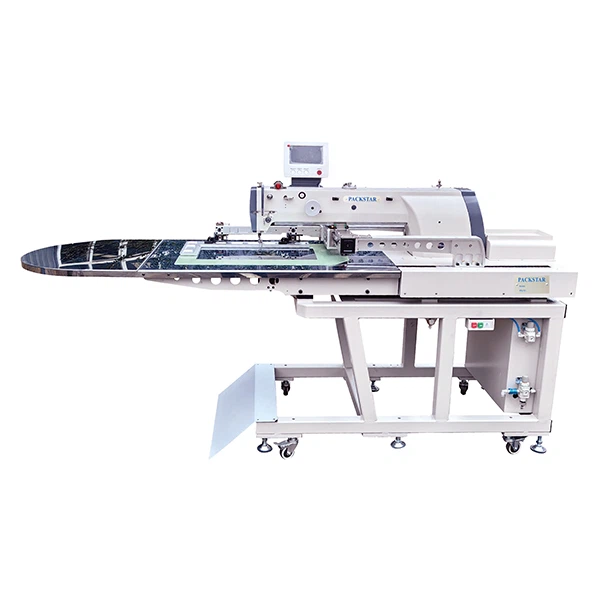

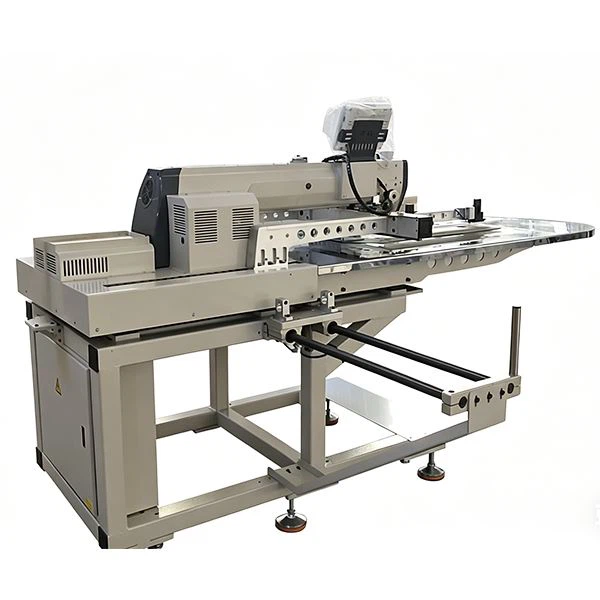

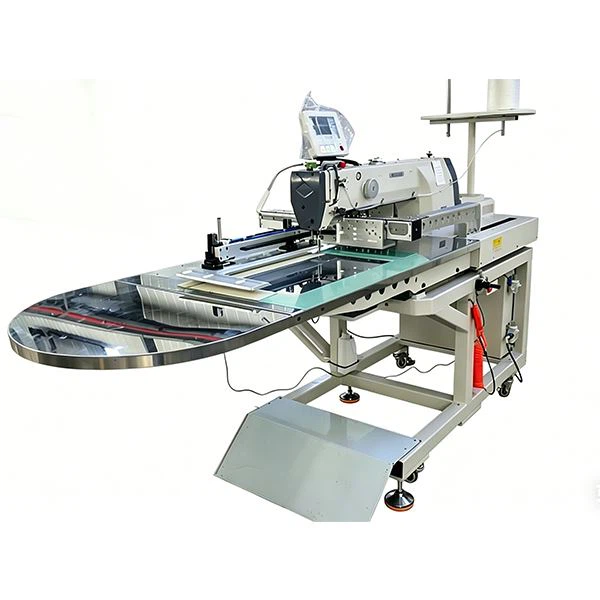

Automatic jumbo bag loop sewing machine PSM-E5030-LS is one computer-controlled high speed pattern industrial sewing machine with Dahao system. It is mainly designed for sewing the different size loops to the big bag body aromatically by preset program, like the freeform sewing with the auto thread trimming function, which can realize the consistent stitch with the significant high production efficiency! It is very good for the extra long loop within 500mm length.
With 6 times super large rotary hook, this automatic big bag sewing machine has the extra long machine head with the large working space under the arm to realize sewingarea 500x300mm, the large size stainless steel bottom plate with unique mounted feeding structure, the long linear rail type feeding with the chain move free and fast, all these characters are very convenient for the operator to stand to run the machine from the side, simple and ease without fatigue.
Besides the above basic information, the automatic jumbo bag loop sewing machine come with the reliable control system as always, modern touchable panel with the multi-language, which has the edit function and USB port for the pattern download and upload. Strong main servo motor and reliable stepping motor. It is one of the best automatic jumbo bag loop sewing machine in the current global market for the stitching between loops and big bag body.

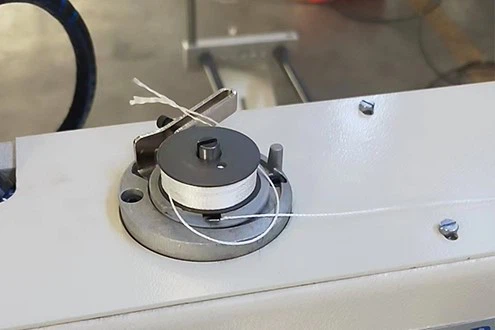

Built-in Bobbin Winder

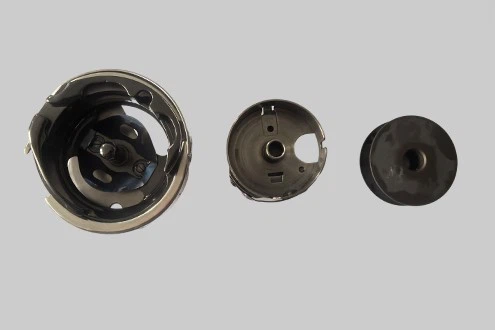

Hook Bobbin

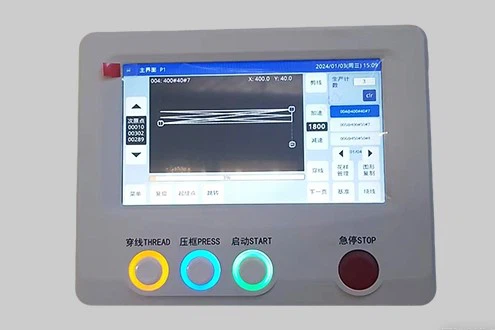

Touchable Panel
Products Features
- Automatic jumbo bag sewing machine
- Dahao control system with the touchable panel
- 6 times super size rotary hook and large bobbin
- Large working space under the sewing arm
- Sewing area up to 500x350mm
Products Specifications
|
Model |
PSM-E5030-LS | |
| Number Of Needle | 1 needle | |
| Max Sewing Speed | 1600SPM | |
| Sewing Area | 500×300mm | |
| Max Stitch Length | 12.70mm | |
| Lift Of The Medium Presser Foot | 15mm | |
| Max Sewing Thickness | 20mm | |
| Needle(Standard) | DD×1 | |
| Hook Type | Extra large rotary hook | |
|
Needle Bar Stroke |
53mm | |
| Take-up Lever Stroke | 103mm | |
Look For Big Bags, Small Bags Making&Closing Sewing Machines!
PACKSTAR-Your Reliable Partner In These Industries
Company profile
Deko Corporation is located in the center of the free trade zone at the national level Hi-tech Zone, Xi'an, China. We mainly dedicate in developing, producing and marketing of PACKSTAR brand big bag, bag sewing & bag closing machines since 1990s, we are one of the world leading suppliers of bag closing and sewing machines in the global market.
For more than 30years, we continuously improve the quality from even one small screw to the whole machine lines and our service, in order to meet our valued customers demand both in domestic and overseas market, improve theirs work efficiency and create the value by joint-efforts.
Superior Quality
Stringent quality control in manufacturing & pre-shipment inspections–delivering consistent reliability for your industrial big bags, bags making and closing production line.
R&D Center
The professional R&D Center drives innovation in the packaging industry. Industrial and National standard-your trusted partner in big bags, bags making and closing industries.
Price Advantage
We deeply understand the quality first as well as the cost importance for all of you whether you plan to start or you already. We always think quality, price and service together!!!
OEM/ODM Service
We offer the full OEM/ODM service in this industry worldwide: R&D-driven design, customization and manufacturing. Global inquiries welcome-your vision, our expertise!
Welcome to email or call us get the professional sewing solution and quotation.
