Products Descriptions & Details
GK35-2C Semi-automatic bag closing system with A1-PT pedestal is a practical semi-automatic bag closing machine, fully operated by a foot pedal for easy start and stop control. This complete unit consists of a GK35-2 bag closing head and compact A1-PT sewing pedestal.
Simply press down the foot pedal to start sewing. The foot pedal controlled bag closing machine automatically cuts the thread once the stitching is finished, and it stops running when you release the pedal. When paired with a 1.5m or 2m belt conveyor, the foot pedal can be configured to synchronously control both the sewing head and the conveyor for unified start and stop operation.
The compact A1-PT pedestal bag closing machine with GK35-2C features height adjustment via a manual handle, delivering simple and hassle-free operation. This versatile semi-automatic bag closing system is widely used for closing filled paper bags, PP woven bags and jute sacks. It is an ideal packaging solution for food, fertilizer, animal feed, chemical products and more.
Applications
Fertilizer Bag
Woven Bags
Paper Bag

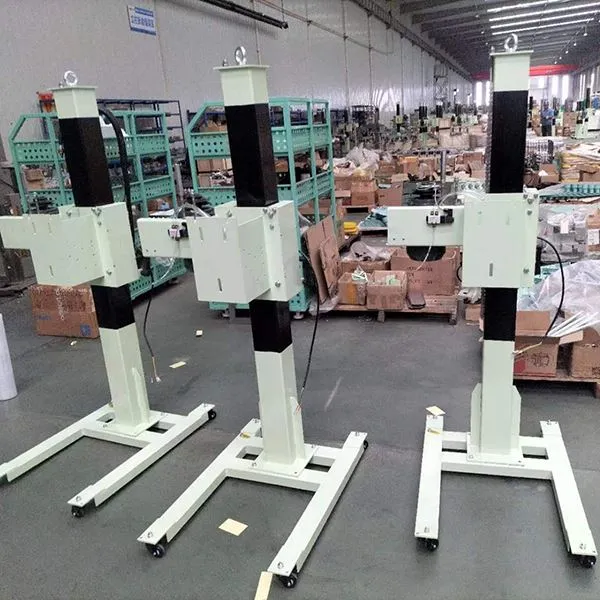

A1-PT Sewing Pedestal
Small size sewing pedestal A1-PT(equal to Newlong A1-PT), mainly for hanging GK35 series bag closing machines heads and different type bag infeed machines, the column height is 1650mm, and the square size is 120x120mm.
Specifications:
●Sewing height: 750-1400mm(from ground to needle)
●Sqare size: 120x120mm

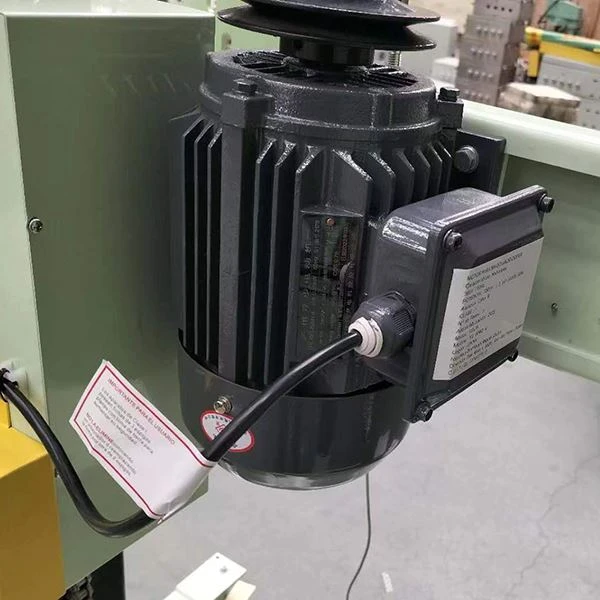

●Motor: 370W
GK35-2C Bag Closing Machine Head
Single needle bag closing machine GK35-2C is the most popular affordable bag closing machine head by its quality and cost in the global market for many years, which similar to Union Special 80800C bag closing machine head. High speed, single needle, two thread, plain feed, chain stitch industrial sewing machine.
Specifications:
●Max.sewing speed: 1800SPM
●Stitch length: 6.5-11mm
●Needle: 80800 #25
●Stitch type: 401
(Optional sewing head: GK35-8/2-needle 4-thread bag closing head)
PLC Control Box
Simple PLC control box with the basic start and stop function, which mainly for the cheap and economical type pedestal bag closing system.
Products Specifications
|
Model |
A1-PT+GK35-2C |
|
|
Working Capacity |
150-300 bags/hour |
|
|
Power |
400W,380V/50Hz |
|
|
GK35-2C |
Max. Sewing Speed |
1800SPM |
|
Stitch Length |
6.5-11mm |
|
|
Max. Stitch Thickness |
8mm |
|
|
Needle |
80800 #25 |
|
|
Stitch Type |
401 |
|
