Products Descriptions

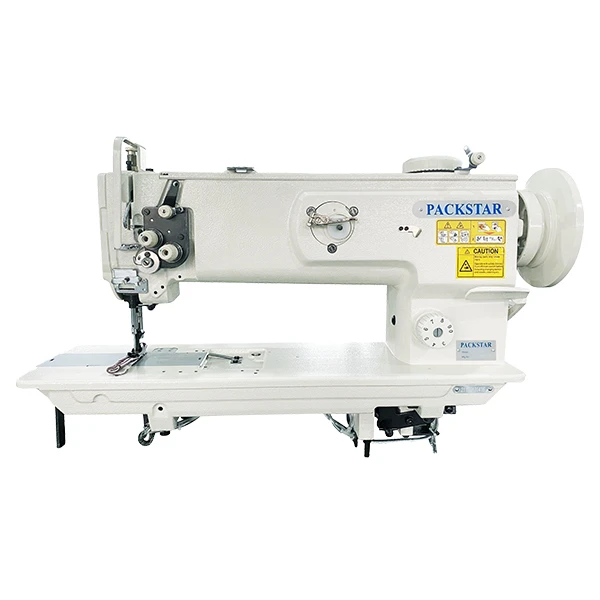

14-inch long arm jumbo bag lockstitch machine GC1510L-14 inherits all mature reliable performance of the basic GC1510 head, including stable triple feed system, large vertical rotary hook, high take-up lever and full automatic lubrication system that fit round-the-clock FIBC manufacturing. Its core upgrade lies in the expanded under-arm working space reaching 355mm×100mm, a targeted improvement developed to fix the most common pain point encountered by bulk bag factories worldwide.
Most manufacturers using regular GC1500 series standard sewing heads for manual lifting loop attachment on jumbo bag bodies frequently face production bottlenecks caused by insufficient arm clearance. Extra-wide and oversized PP woven, PE coated bulk bag panels cannot fully pass through the narrow space under the sewing arm smoothly during loop stitching, corner reinforcement and side panel sewing. Operators have to repeatedly flip, drag and reposition heavy thick fabrics, which wastes lots of time, slows down assembly rhythm and easily creates uneven stitches or damaged big bag fabrics.
With 355×100mm under-arm clearance, the GC1510L-14 oversized PP PE woven jumbo bag sewing machine completely eliminates fabric jamming and cumbersome repositioning work. Large-format jumbo bag cloth can slide, rotate and turn freely under the arm without forced folding. Operators finish loop-to-body seams, bottom panel joints and irregular corner stitching in fewer steps, greatly simplifying manual operation and significantly boosting daily production output. For this obvious efficiency advantage, more and more medium and large-scale FIBC factories are phasing out ordinary short-arm models and upgrading to GC1510L-14 long arm sewing equipment.
In addition, the GC1510L-14 manual lifting loop stitching FIBC sewing machine has two upgraded models. If you need energy-saving, low-noise high-speed operation without belt transmission loss, choose the direct-driven version GC1510DL-14 with built-in servo motor and digital needle position control. For fully automated version that demand zero manual thread trimming, select GC1510L-14-7 integrated with synchronous moving/fixed knife auto thread cutting mechanism.
This versatile 14 inch long arm bulk bags sewing machine is widely applicable to all mainstream FIBC production processes, including lifting loop sewing, spout fabric stitching, multi-layer panel joint and edge reinforcement for grain, mineral, chemical and fertilizer jumbo bags. It becomes an ideal cost-effective upgrade solution for old production lines and new FIBC factory layout planning.
Applications
Jumbo Bag
Container Bag
Big Bag
Products Specifications
|
Model |
GC1510L-14 |
|
Number Of Needle |
Single needle |
|
Max.Sewing Speed |
2500SPM |
|
Max.Stitch Length |
9mm |
|
Max.Sewing Thickness |
16mm |
|
Needle(Standard) |
DPx17 |
|
Working Space |
355x100mm |
|
Hook Type |
Large vertical axis rotary hook |
Products FAQ
1.What types of large bags are your machines suitable for?
A: They are widely used for sewing container bag baffles, cross bottoms, filter bag cylinder beds, and other mainstream large bag styles. Custom sewing of large bags with special shapes is also supported.
2.How long is the service life of your big bag sewing machine?
A: The machine adopts integral cast iron structure and high-precision accessories. With standard maintenance, the service life can reach more than 10 years.
3.How about the packaging and transportation of that machine?
A: All the machines are packed in standard export cartons or wooden packaging boxes to prevent damage during transportation.
4.What payment terms do you accept?
A: We accept T/T,Paypal,Western union ect.
