Products Descriptions

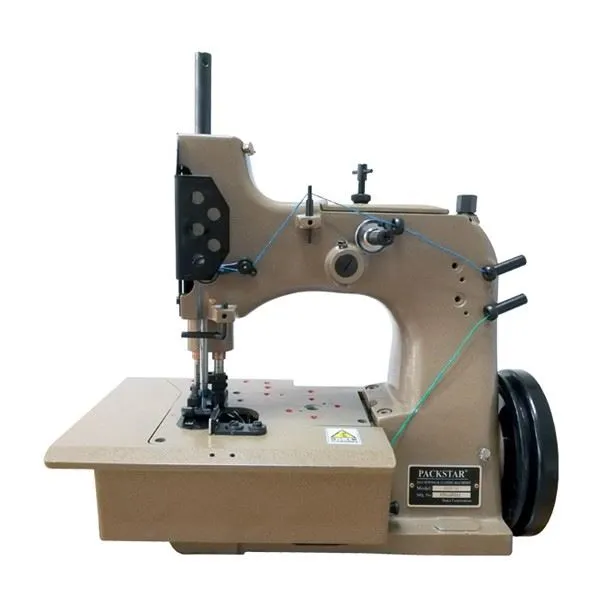

GN20-2D High Speed Big Bag Sewing Machine, High Speed Overedge Chain Stitch Machine for FIBC Production.
The GN20-2D high speed big bag sewing machine is a high-speed industrial unit with 1-needle 2-thread overedge chain stitch, purpose-built for sewing and finishing side seams on all types of jumbo bags. It is a reliable and cost-efficient workhorse for FIBC manufacturing plants.
This economical big bag sewing machine adopts one needle and one lower looper to form standard 503 safety overlock and straight chain stitches. The finished stitches are neat and consistent for uniform bag quality. It comes with a top oil tank and semi-automatic lubrication system to ensure smooth continuous operation and extend service life. The dual filler cord guide supports cord feeding from top or bottom, which fully seals needle holes during sewing and effectively prevents material leakage inside container bags.
Designed with a simplified internal structure and high-quality parts, the low cost FIBC sewing machine for production line is quick to set up, adjust and maintain, minimizing downtime on your production line. It features flexible adjustable specifications: maximum overedged seam width up to 15mm, stitch length ranging from 7mm to 16mm, and a maximum sewing thickness of 20mm, fully adapting to different fabric thicknesses of large bags.
As an economical jumbo bag chainstitch sewing machine, it is widely applicable to produce FIBC bags, container bags, jumbo bags and bulk bags. With low procurement cost and stable running performance, it is the perfect pick for budget-friendly big bag factories across the globe.
Applications
Big Bag

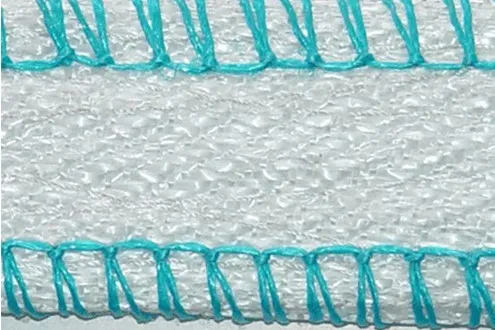

Stitch Sample

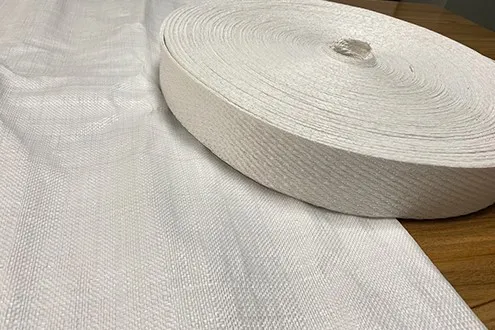

Jumbo Bag
Products Specifications
|
Model |
GN20-2D |
|
Number Of Needle |
One needle |
|
Feeding Structure |
Upper and lower feed |
|
Max.Sewing Speed |
1400SPM |
|
Max.Stitch Length |
3.5-7mm |
|
Max.Sewing Thickness |
12mm |
|
Needle(Standard) |
GN20-400/#33 |
|
Stitch |
502 |
Products FAQ
1.What types of large bags are your machines suitable for?
A: They are widely used for sewing container bag baffles, cross bottoms, filter bag cylinder beds, and other mainstream large bag styles. Custom sewing of large bags with special shapes is also supported.
2.How long is the service life of your big bag sewing machine?
A: The machine adopts integral cast iron structure and high-precision accessories. With standard maintenance, the service life can reach more than 10 years.
3.How about the packaging and transportation of that machine?
A: All the machines are packed in standard export cartons or wooden packaging boxes to prevent damage during transportation.
4.What payment terms do you accept?
A: We accept T/T,Paypal,Western union ect.
why choose us
our Company
PACKSTAR is a leading professional manufacturer of bag sewing machines, bag closing machines and supporting packaging equipment. Our products are trusted by clients in over 30 countries, serving food, chemical, feed, grain, fertilizer and packaging industries.
Meanwhile, we offer one-stop services including pre-sales technical consultation, free solution design, on-site installation guidance, long-term after-sales maintenance & spare parts supply.
Welcome to email or call us get the professional sewing solution and quotation.
